Shortwave infrared continuous zoom imaging system series products
Ultra-Wide Wavelength, Large-Aperture Short-Wave Infrared Imaging System for Long-Range Detection & Identification
-
Estimated Delivery:Jul 13 - Jul 17
-
Free Shipping & Returns: On all orders over $75

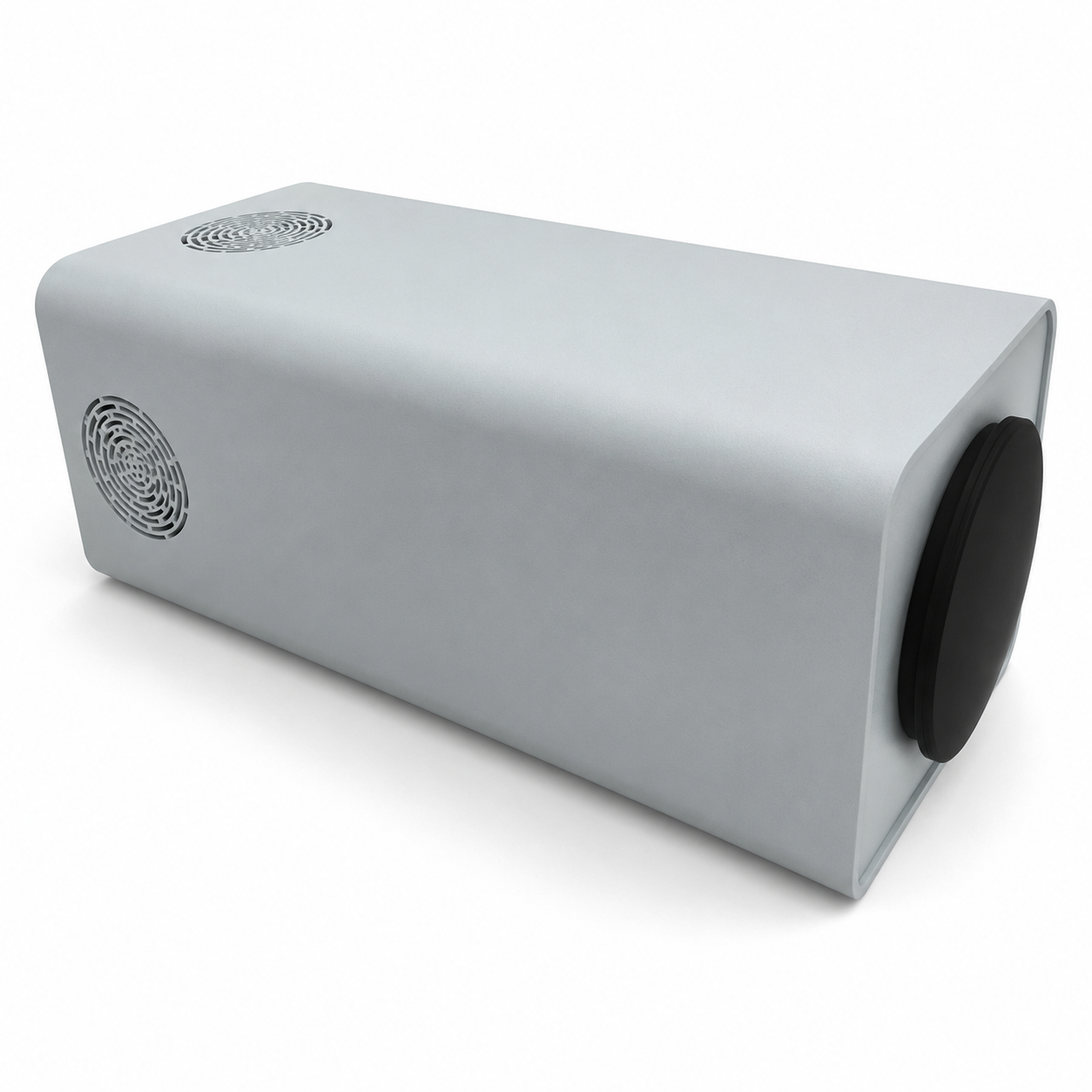

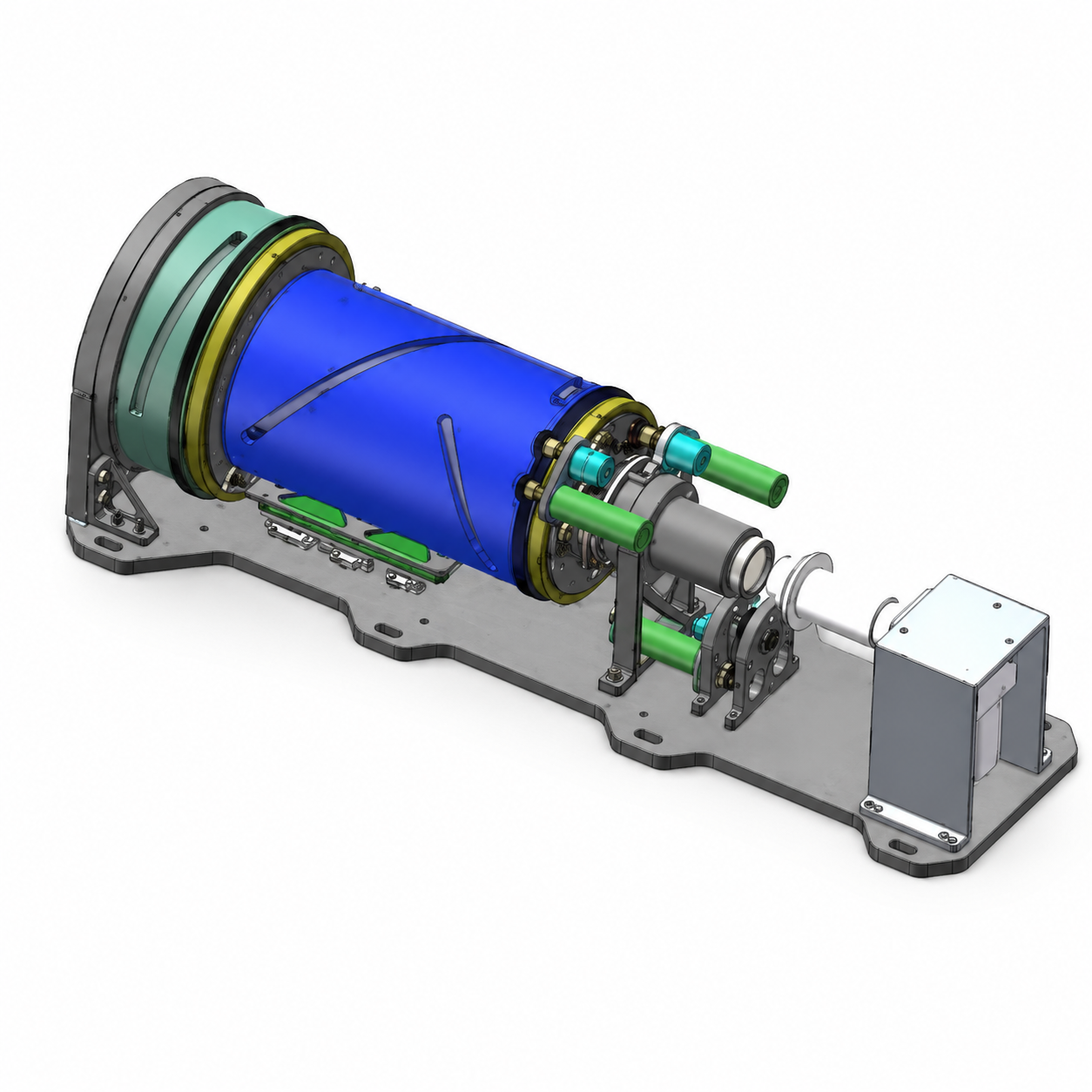

SWIR Continuous Zoom Imaging System Series
Ultra-Wide Wavelength, Large-Aperture Short-Wave Infrared Imaging System for Long-Range Detection & Identification
Designed for professional observation in fog, smoke, low-contrast scenes and complex outdoor environments, this SWIR continuous zoom imaging system delivers flexible optical zoom, high-resolution imaging and low-power operation for demanding monitoring applications.
Continuous Zoom Performance
Available focal-length ranges include 15–300 mm, 20–260 mm and 30–390 mm, supporting both wide-area search and detailed long-range observation.
High-Resolution SWIR Imaging
Equipped with a 640 × 512 sensor and 15 μm pixel size, the system is built for clear SWIR image acquisition and precise target recognition.
Low-Power Industrial Design
With power consumption of ≤8W, the system is suitable for long-duration field monitoring, fixed surveillance platforms and integrated optical payloads.
Built for Critical Detection Scenarios
The SWIRZMOP series is suitable for airports, highways, high-speed railways, border ports, forest fire early-warning, fire-point recognition and anti-camouflage identification.
Model Options & Key Specifications
| Specification | F15TO300F4 | F20TO260F3-5 | F30TO390F5-7 |
|---|---|---|---|
| Spectral Range | 0.9–2.3 μm | 0.9–1.7 μm | 0.9–1.7 μm |
| Zoom Range | 15–300 mm | 20–260 mm | 30–390 mm |
| Sensor Resolution | 640 × 512 | 640 × 512 | 640 × 512 |
| Pixel Size | 15 μm | 15 μm | 15 μm |
| Power Consumption | ≤8W | ≤8W | ≤8W |

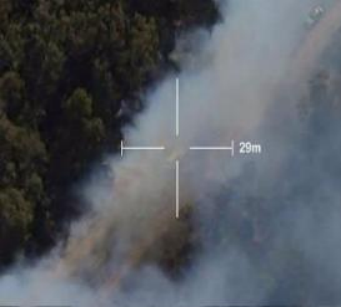

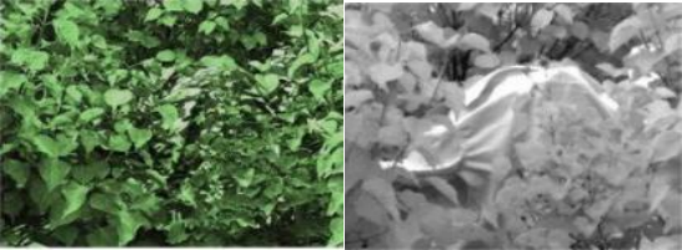

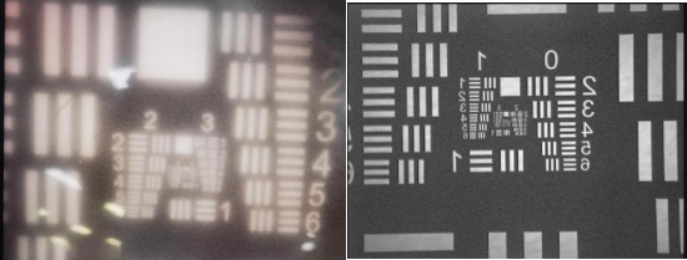

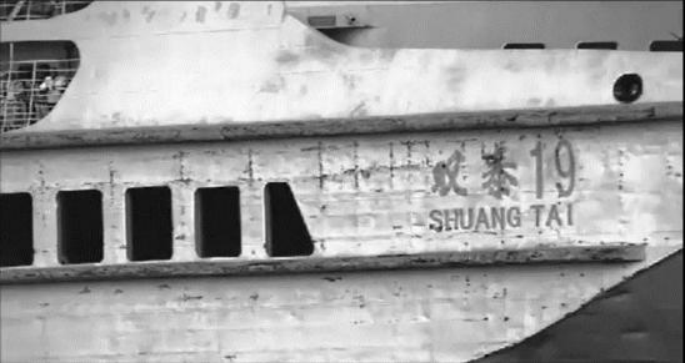

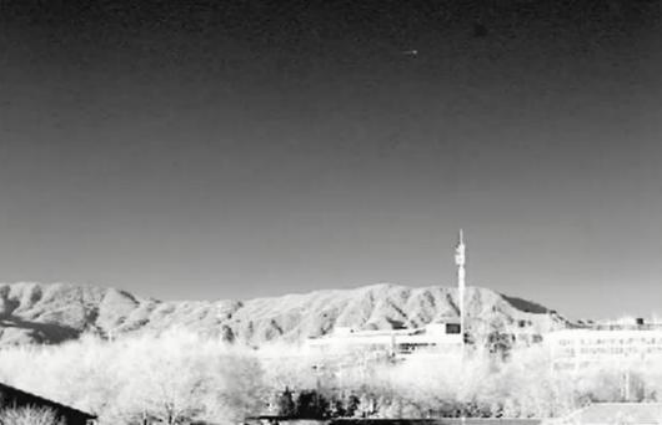

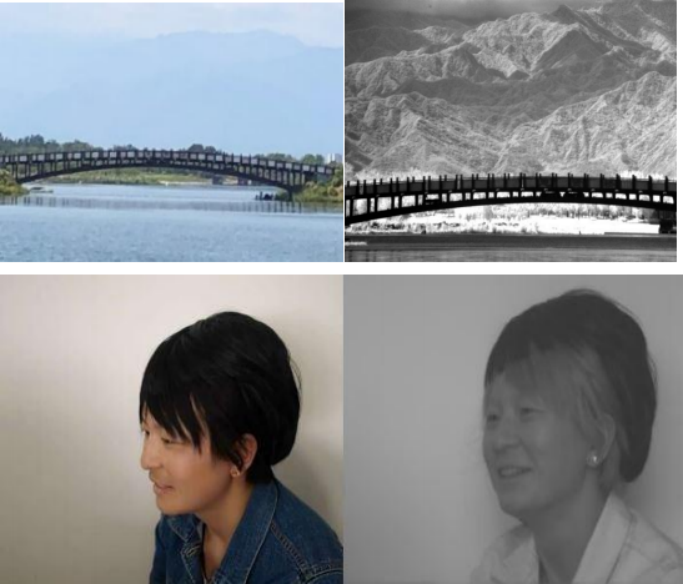

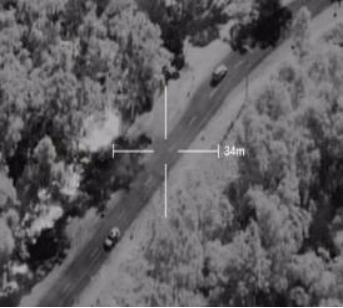

Imaging effect demonstration
![]()
![]()
![]()
![]()
![]()
![]()
![]()
