Thermal Imaging Scope - JB-NM384/JB-NL640
High-definition thermal imaging with advanced detail enhancement, shutterless correction, WiFi transmission and onboard image storage.
-
Estimated Delivery:Jul 13 - Jul 17
-
Free Shipping & Returns: On all orders over $75

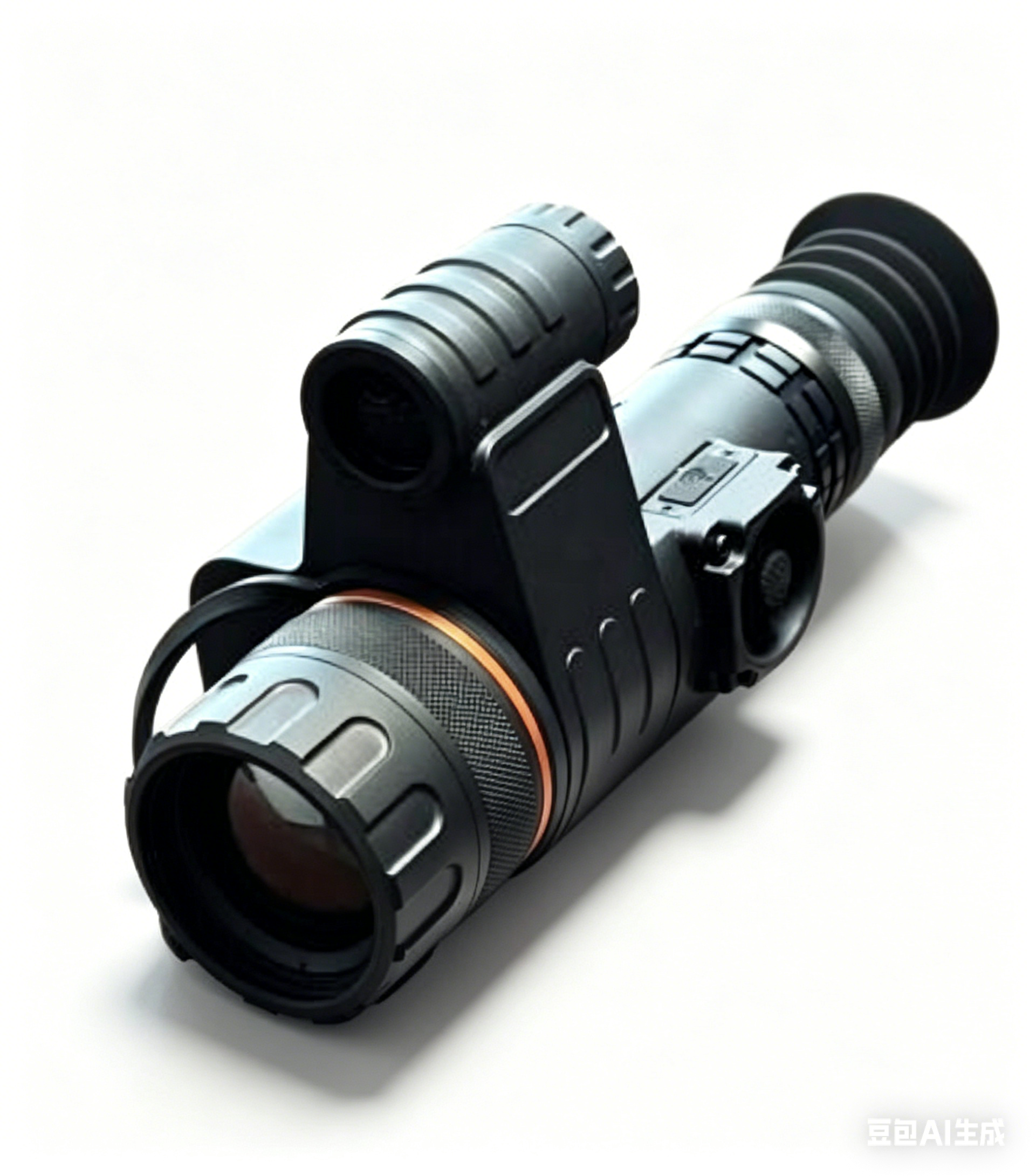

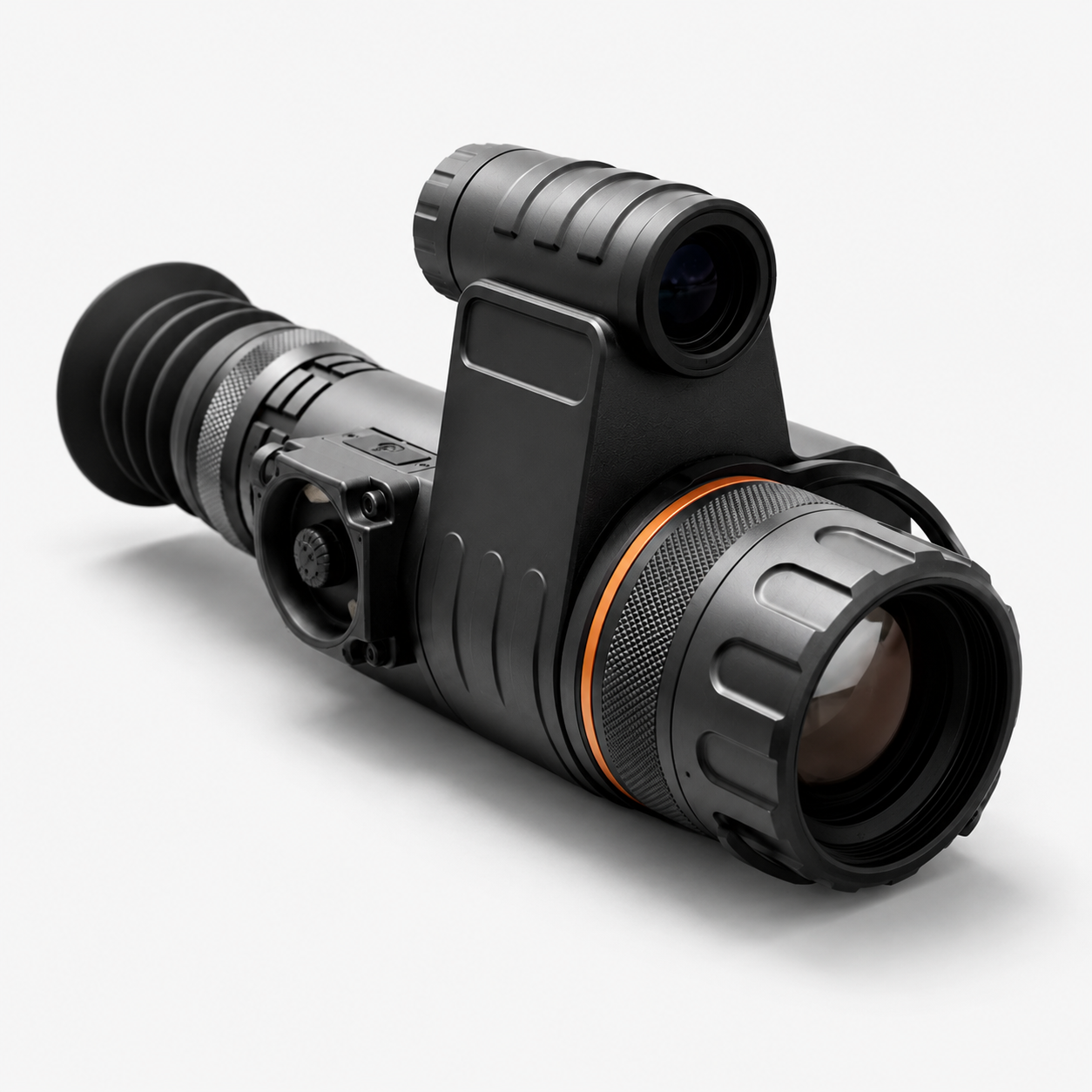

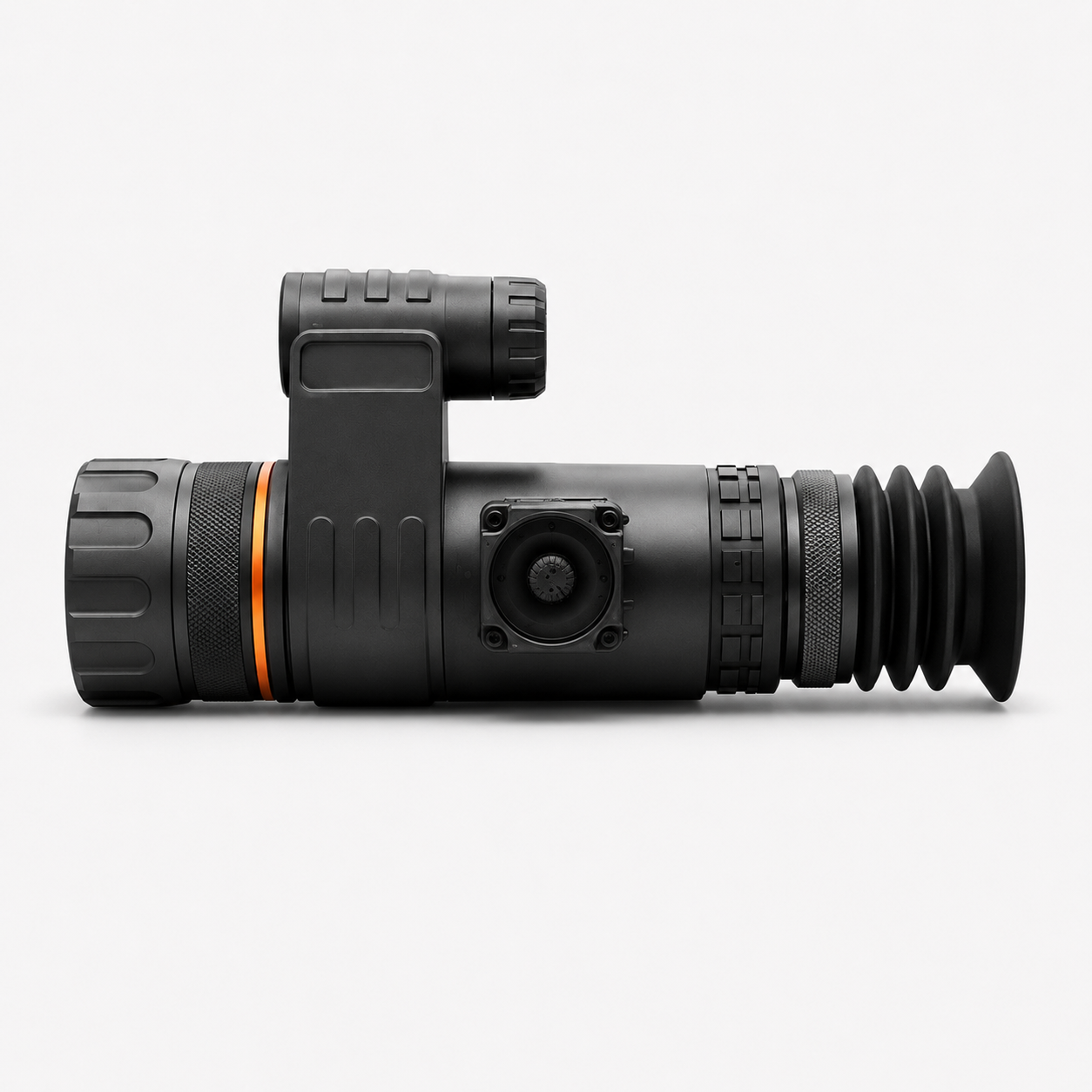

JB-NM384 / JB-NL640 Thermal Imaging Sight
High-definition thermal imaging with advanced detail enhancement, shutterless correction, WiFi transmission and onboard image storage.
The JB-NM384 and JB-NL640 series are designed to deliver clear and stable thermal images in complex environments. With advanced image processing algorithms, shutterless non-uniformity correction, WiFi connectivity and built-in storage, the system provides continuous observation, reliable target detection and efficient image recording for professional outdoor and security applications.
Available Models
JB-NM384
Resolution: 384 × 288
Lens: 35mm–40mm
Human Detection: 1200m
Vehicle Detection: 1800m
Weight: ≤600g
JB-NL640
Resolution: 640 × 512
Lens: 70mm–75mm
Human Detection: 1500m
Vehicle Detection: 2200m
Weight: ≤980g
Enhanced Thermal Detail
Advanced detail enhancement technology and updated image processing algorithms help produce high-quality thermal images with visible-light-like clarity in complex environments.
Shutterless Correction
The shutterless non-uniformity correction design reduces interruption caused by traditional black-screen calibration, helping maintain continuous observation in changing environments.
WiFi & Image Storage
Integrated WiFi transmission and 32GB storage support real-time network connection, image capture and video recording for efficient information sharing and review.
Product Details & Technical Highlights
| Category | Specification | Details |
|---|---|---|
| Detector | Uncooled Thermal Detector | 384 × 288 or 640 × 512 resolution, 12μm pixel size, 8–14μm working waveband, NETD ≤35mK. |
| Display | OLED Display | 0.39-inch OLED display with 1024 × 768 resolution and 50Hz frame rate for smooth image viewing. |
| Image Modes | Multiple Color Palettes | White hot, black hot, iron red, desert yellow, green hot, red hot, sky and edge display modes. |
| Zoom | Digital Magnification | Supports x1, x2 and x4 electronic zoom for flexible image observation. |
| Power | Rechargeable Battery | Powered by two 18650 rechargeable lithium batteries, with operating time of 7 hours or more at normal temperature. |
| Environment | Rugged Protection | Working temperature from -40°C to 60°C, storage temperature from -45°C to 65°C, IP67 protection rating. |
| Interface | Type-C Port | Equipped with Type-C electrical interface, WiFi RTSP streaming and support for image and video storage. |

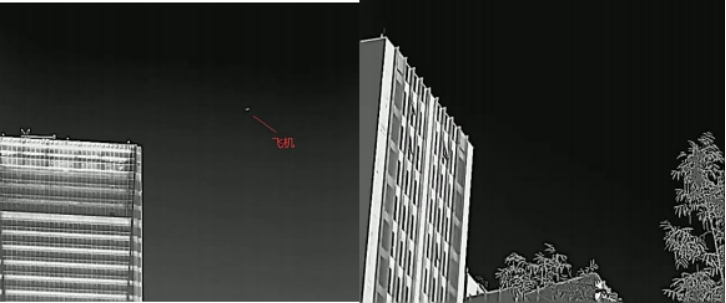

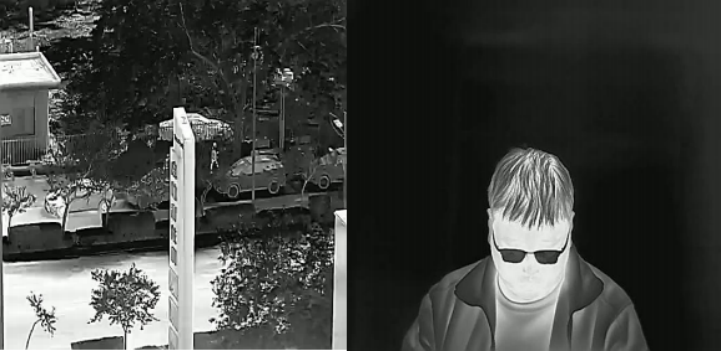

Imaging effect demonstration
![]()
![]()
